Lithium battery 3V IMOS CR2477 battery pack 3000mah button cell for Smart label with OEM
Specification for CR2477 Lithium Button Battery 3.0V:
TABLE Ⅰ:
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 1000 | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 9.5 | Unit cell |
| Service output | Initial | Standard | 500 h | Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum | 480 h |
| After 12 months storage | Standard | 475 h |
| Minimum | 470 h |
TABLE Ⅱ:
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage | ≤5% |
3PCR2477 lithium battery 3000mah 3.0 volt Data:
| Type | Primary lithium battery |
| Model | 3Pcr2477 |
| Voltage | 3V |
| Capacity | 3000mah |
| Terminals | 51021 or SHR-2p, or customized |
| Application | Toys, Tags, RFID etc |
| LOGO | Welcome customized |
| Shipping | express, air, sea |
| OEM | Welcome |
| Payment | T/T or depends on the quantity |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |

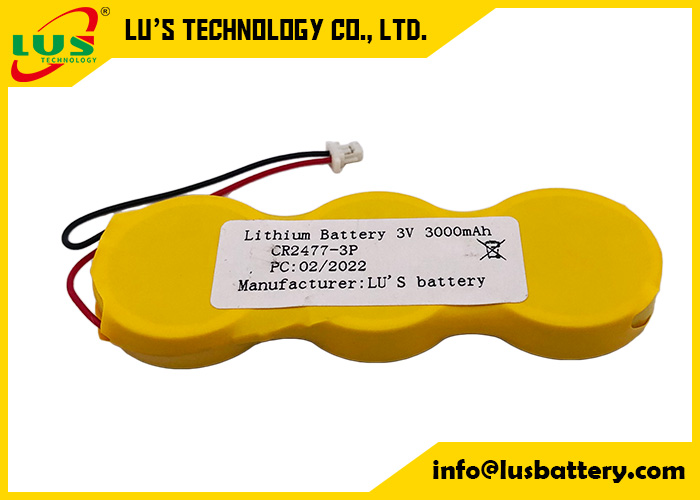

CR2477 Lithium Battery 3P Product:
Welcome any battery with OEM/ODM service:
Product Tags:
|
|
3V IMOS CR2477 3000mah Lithium Button Cell For Smart Label With OEM Images
|
