ER17505M A Size Lithium Thionyl Chloride Battery 3.6V 2800mah Lisocl2 Material

Brand Name : OEM

Model Number : ER17505M

Place of Origin : China

MOQ : 10pcs

Price : Bargain

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 5-8 working days

Packaging Details : cartons

Material : Lisocl2

Catagories : Power type

Size : A

Voltage : 3.6V

Capacity : 2.8Ah

Weight : 28g

Contact Now

Model:ER17505M Primary lithium batteries Li-SOCl Power type A size 3.6V 2800mAh

Technical data:

Name	Lisocl2 battery	Lithium Thionyl Chloride Battery
Model	ER17505m	ER17505
Size	A	A
Nominal capacity (3mA~2V)	2800mah	3.4 Ah
Rated voltage	3.6V	3.6 V
Max constant current of discharge	600mA	120 mA
Max discharge current(pulse)	1200mA	200 mA
Weight	28g	25 g
Operating temperature range	-55℃~+85℃	-55℃~+85℃
Storage temperature (recommended)	+30℃	+30℃

Important Notes:

Do not short or charge the battery.

Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.

Do not heat/use the battery beyond the permitted temperature range.

Application:

Utility Metering,

Automatic Meter Reading,

Medical Electronics,

Memory Backup,

Tracking Systems,

Law Enforcement (RFID),

Earthquake Detectors,

Digital Control Devices,

Remote Monitory Systems,

Electronic Toll Tags,

Scientific Instruments,

Portable Communication

Equipment,

Military Radio Stations,

And other electric powered devices requiring small size,

High power batteries.

Product list:

International Model Size	Model Number	Max Dimension	Weight	Nominal	End Voltage	Nominal Capacity	Max Continuous Operating Current	Max Pulse Discharge Current
International Model Size	Model Number	mm	g	Voltage	V	mAh	mA	mA
AAA	ER10450	φ10.4X45.3	8	3.6	2	600(1mA)	25	60
	ER11120	φ11.5X12.0	2	3.6	2	100(0.2mA)	2	4
	ER13150	φ13.5X15.0	6	3.6	2	450(0.5mA)	10	30
L31	ER13460	φ13.5X46.0	14	3.6	2	1500(1mA)	60	100
1/2AA	ER14250	φ14.5X25.0	10	3.6	2	1200(0.5mA)	20	45
2/3AA	ER14335	φ14.5X33.5	13	3.6	2	1650(1.3mA)	75	150
AA	ER14505	φ14.5X50.5	22	3.6	2	2400(2mA)	100	200
2/3A	ER17335	φ17.0X33.5	21	3.6	2	2100(2mA)	100	200
	ER17505	φ17.0X50.5	25	3.6	2	3400(4mA)	120	200
A	ER18505	φ18.8X50.5	30	3.6	2	4000(2mA)	120	200
C	ER26500	φ26.2X50.0	53	3.6	2	8500(3mA)	130	300
D	ER34615	φ34.0X61.5	108	3.6	2	19000(2mA)	200	400

International Model Size	Model Number	Max Dimension	Weight	Nominal	End Voltage	Nominal Capacity	Max Continuous Operating Current	Max Pulse Discharge Current
International Model Size	Model Number	mm	g	Voltage	V	mAh	mA	mA
1/2AA	ER14250M	φ14.5X25.2	10	3.6	2	750(4mA)	120	250
2/3AA	ER14335M	φ14.5X33.5	13	3.6	2	1200(4mA)	300	500
AA	ER14505M	φ14.5X50.5	22	3.6	2	1800(10mA)	500	1000
2/3A	ER17335M	φ17.0X33.5	21	3.6	2	1700(5mA)	500	1000
A	ER18505M	φ18.8X50.5	30	3.6	2	3200(10mA)	800	1500
C	ER26500M	φ26.2X50.0	53	3.6	2	6500(10mA)	1000	2000
D	ER34615M	φ34.0X61.5	108	3.6	2	14000(10mA)	2000	3000
Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.

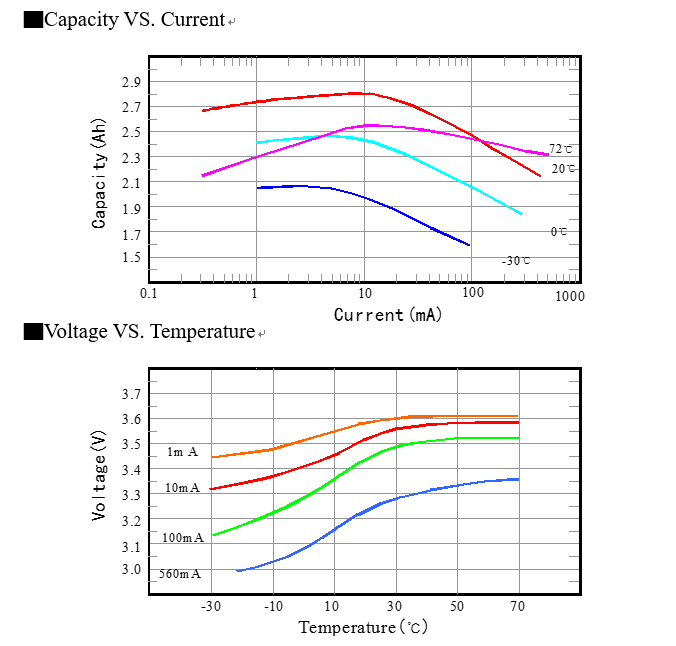

Testing Result:

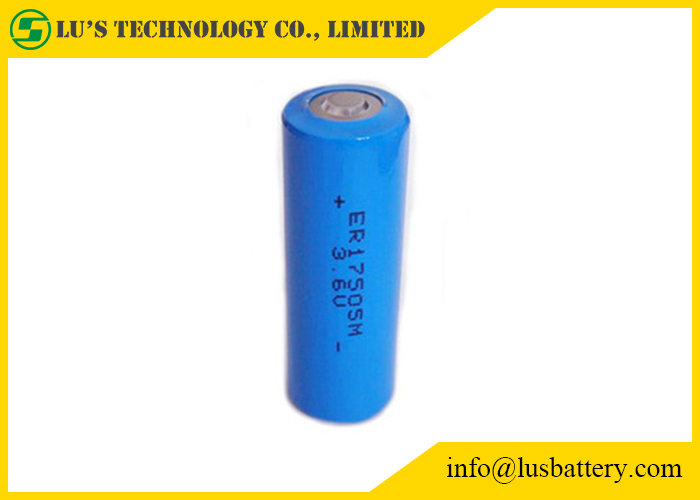

Product picture:

ER17505M A Size Lithium Thionyl Chloride Battery 3.6V 2800mah Lisocl2 Material
